Eratos Model Ontology

📘
This page describes the use of schemas for models.

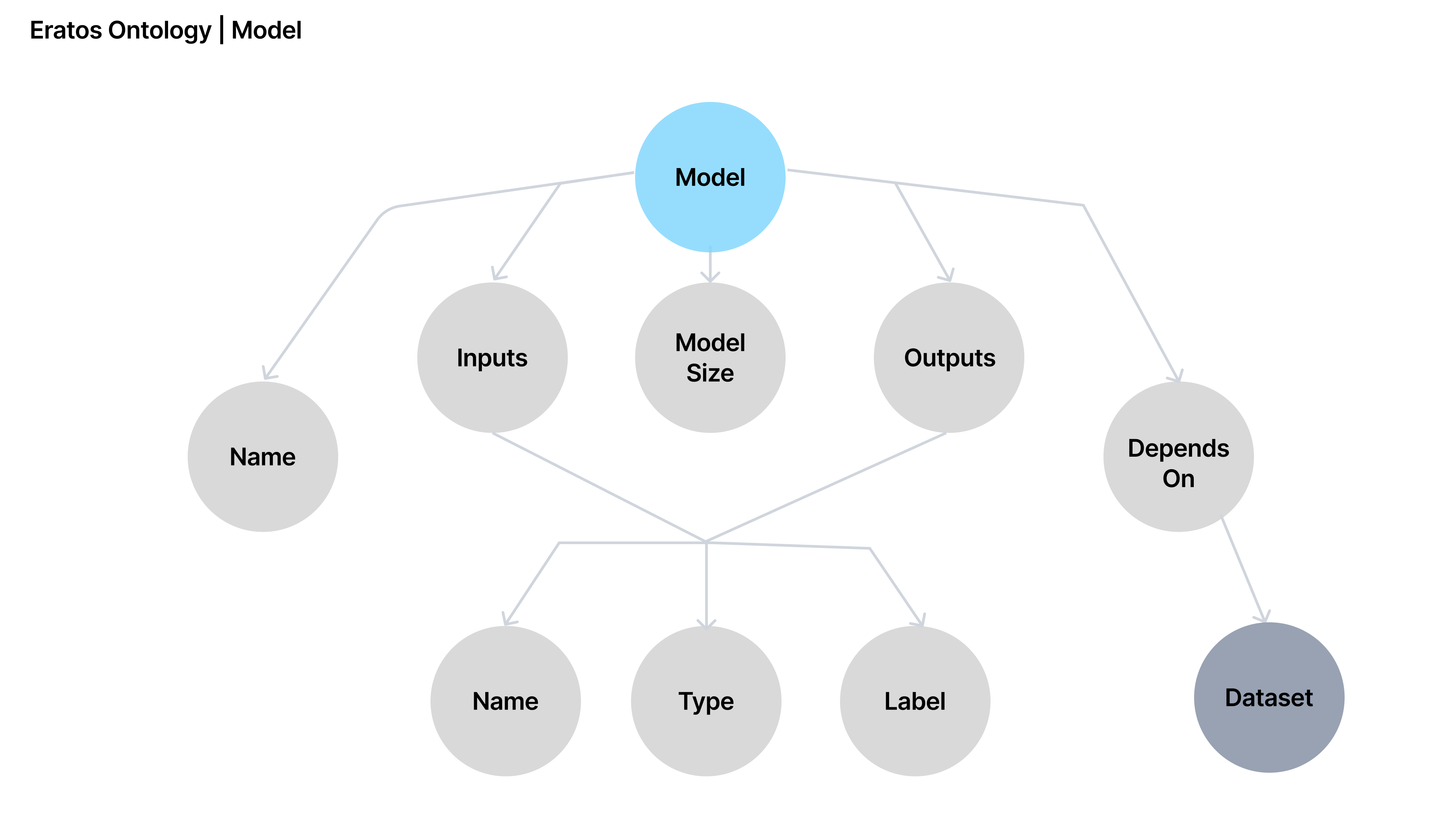

Eratos Model Metadata:

An Eratos Model is wrapped in a metadata structure that defines the inputs and outputs of the model and provides a link to the underlying data, empowering users to assess and ensure the model they are using for a given model is fit for purpose.

Eratos Model | 5km Frost Risk

"@id": ern:e-pn.io:resource:qwolf.operators.historical-5km-frost-risk-at-point
"@type": ern:e-pn.io:schema:operator
"@geo": POLYGON((112 -44.99365234375, 112 -10, 154.99609375 -10, 154.99609375 -44.99365234375, 112 -44.99365234375))
name: Historical 5km Frost Risk
description: |
    Returns the visualised and raw frost risk calculations for a given geometry at 5km resolution.
type: Container
inputs:
    - name: latitude
      type: number
      description: The Latitude of the point of interest.
      required: True
    - name: longitude
      type: number
      description: The Longitude of the point of interest.
      required: True
    - name: temperatureThreshold
      type: number
      description: The threshold Temperature, temperatures <= will be considered frost.
      required: True
      label: Temperature Threshold (C)
    - name: targetStartDate
      type: string
      description: The Target start date, eg. 09-15
      required: True
      label: Target Start Date
    - name: targetEndDate
      type: string
      description: The Target end date, eg. 10-15
      required: True
      label: Target End Date
    - name: size
      type: number
      description: The size (km) of the area around the point
      required: True
      label: Size (km^2)
outputs:
    - name: historicalFrostRiskKeplerMap
      type: resource
      description: Map Visualisation of the portfolio and the associated fire risk.
    - name: frostRiskTable
      type: resource
      description: Summarisation of the risk scores into a single table.
senapsModel: qwolf.operators.historical-5km-frost-risk-at-point
senapsInstanceProfile: S
